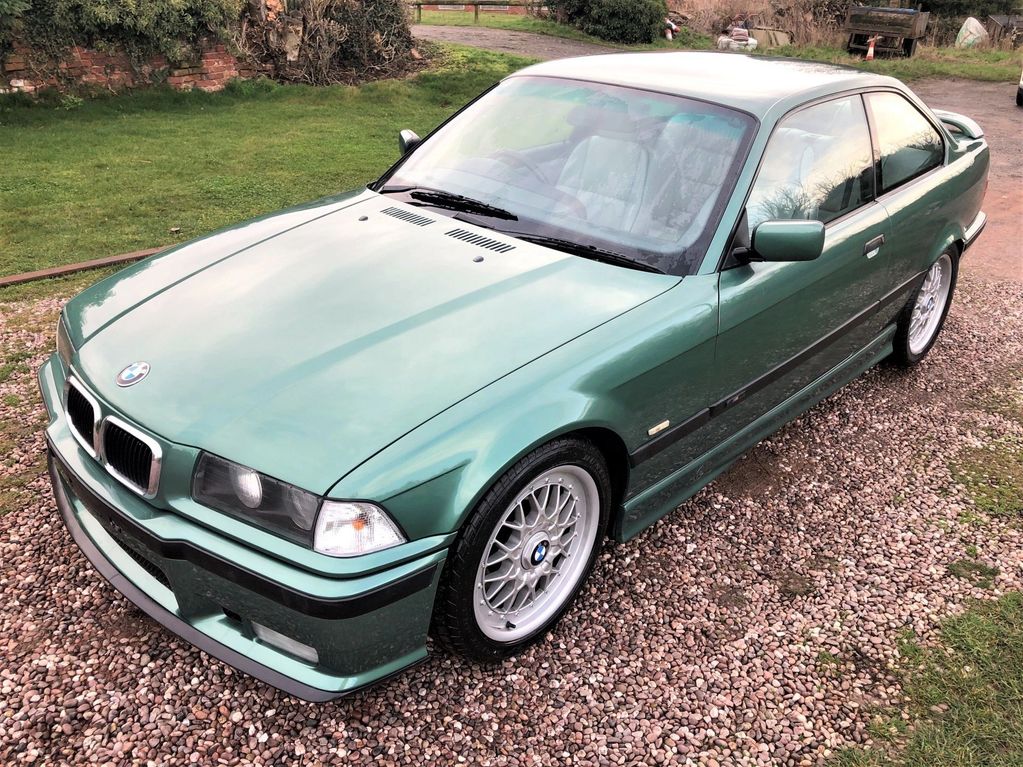

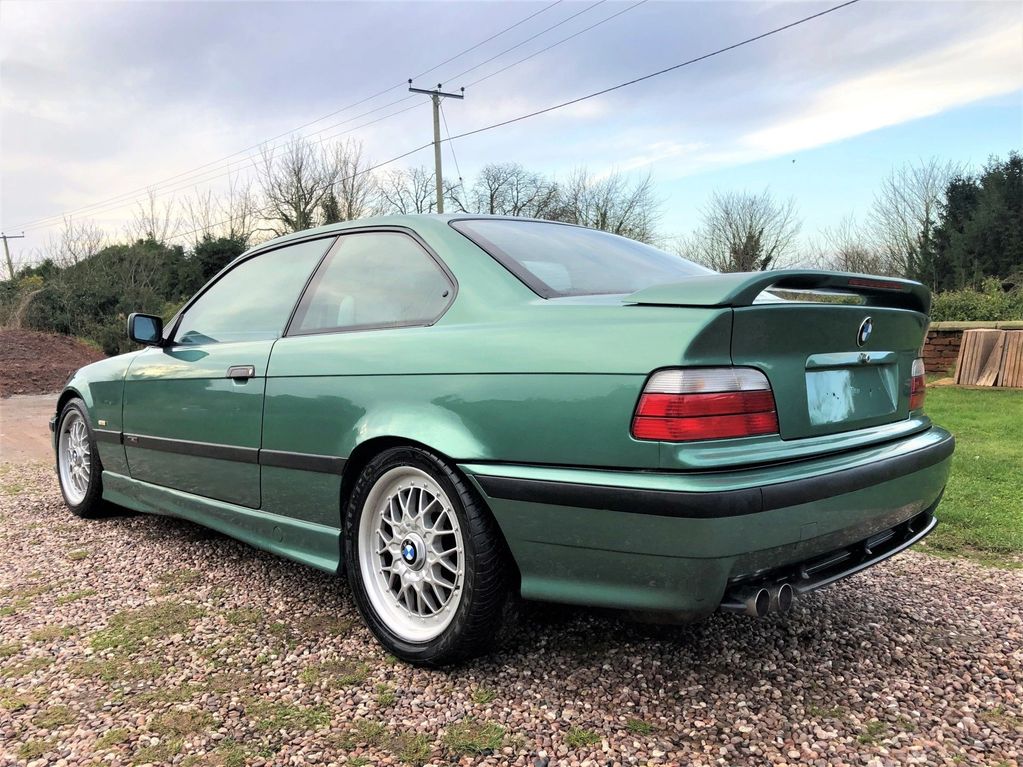

1999 BMW E36 328 SPORT INDIVIDUAL
This E36 328 sport was brought to us by bmwe36shop.co.uk, who had purchased it for restoration & Resale. It had been sat in a dry shed for 5 years and required full re commissioning, including but not limited too, suspension, brake lines and hoses, servicing, tyres, wheel refurbishment, full diagnostic checks and a full geo setup.
The finished car flew though its MOT with No advisories, It was then test driven for 50 miles to ensure it was fully fit for resale, Being a proper sport with the Bilstein Avus package it handles superb and feels great on the road, with plenty of power and great brakes due to the upgraded 330i setup fitted, A real drivers car. The car was then advertised on Ebay & sold shortly after being listed.

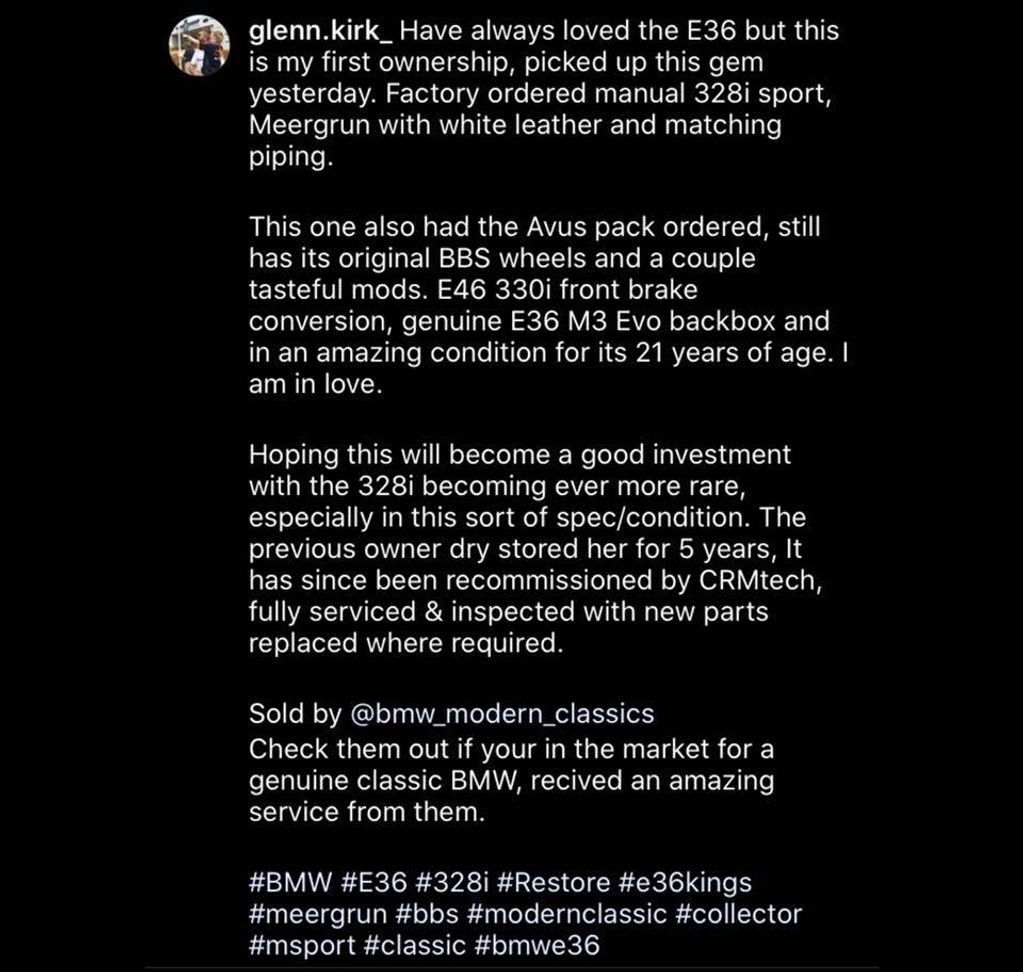

Some great feedback from its new owner Glen, who works for Redbull racing :o)
BMW E36 328 DTM style Road car build - My own personal labour of love
BMW 323 62000 mile donar car, 2 owner, garaged all its life, no rot anywhere
Fully stripped to bare shell, detailed cleaned and re painted floor pan in Gravihell Armour skin, mix in white, completely new axles, inc all brake parts, back plates, all bushes, bearings, cables and sensors, rear axle fully poly bushed, Low millage M3 LSD, low millage 328 engine and box with prop, ne Z3m short shifter with new weighted M3 knob, Purple tag quick rack with new rack ends and rubber gaiters, gearbox has new detent springs, new clutch pivot and new selector linkage and all shifter bushes,
New bilstein B12 kit with B8 shocks with new bilstein top mounts, new BMW spring rubbers, eibach pro springs, M3 3.0 wishbones with new solid HD ball joints, new M3 solid rubber offset lollipop bushes, new engine and box mounts, new M3 clutch and flywheel, new centre bearing and rubber doughnut on prop, new cat and stainless M3 back box, new brake lines and fuel lines. New handbrake cables and all handbrake parts, inc cable hangers, new rear exhaust heatshield, new M3 exhaust hangers,
Engine, 70,000 mile 328 – new water hoses x 9 new thermostat and housing new water pump, new belts and tensioner / guide rollers, new rocker gasket and oil filter housing gasket, new plugs, oil and filter, new idle valve pipe, new intake boot. New clutch flywheel and spigot bearing, manual engine harness and mapped ecu, M50 inlet manifold, circa 220bhp, finished with a USA M3 top engine cover.
Genuine M3 front and rear bumper, front with mesh grill, diffuser and corner splitters. Genuine M3 wing mirrors, side skirts, M3 mouldings
M3 GT style rear spoiler 4 piece with riser blocks
New 18” Team dynamic pro race 1.2s wrapped in new Michelin pilot sport 4’s
New pagid discs, road pads and calliper’s. new brake spring clips and 4 new abs sensors.
M-tech 2 steering wheel, full black M3 leather interior, New Black M3 headliner and parts
New windscreen, new genuine M3 rear lights, new side and front indicators
New radiator and ac condenser, OMP strut brace, new boot seal, and so much more....
Drives absolutely fantastic, handles like its on rails and feels so well balanced, it pulls very well, has fully working air con and the exhaust noise is epic, pops crackles and burbles, not for the faint hearted ! This car has to be driven to be appreciated. could easily be used on track with just a brake pad upgrade all round.
Drives the way how an E36 328 sport should have done when it left the factory.
Total build time over 200 hours.
£14,995
BMW 328 Tourer M3 replica
Shell came to us having covered over 200k but had had a full professional respray inside and out in M3 Estoril blue some years back, it was very very clean on the body but starting to show its age on the floor pan, so we stripped it to a a bare shell, cleaned up and treated any surface corrosion, epoxy primed any bare areas then painted the floor pan in Raptor Bed liner tintable in Estoril Blue.
We had a 328 convertible in with low miles on that had sadly come to the end of its life due to the hood leaking and the interior getting wrecked plus its floor pan rotted out, but it had a great condition running gear on, so we used its running gear having only done 73000 miles to re furbish for this tourer, starting with good steel components is far better than trying to work with older more corroded stuff, and as we only wanted the bare steel components and its engine and associated running gear it was a great start.
So we set about completely refurbing the axles, removal of all bushes and components and then taking the parts back to bare steel in our media blaster, followed by epoxy primer and re painting. next we fitted all new OEM spec bushes, bearings, brake components, back plates, sensors, hoses, pipes, cables, ball joints etc etc,
We have also fitted a low millage M3 3.0 LSD, New Brembo discs, pads and calliper’s. new brake spring clips and 4 new abs sensors, new handbrake cables and hangers.
The 328 engine and box with prop were all given much love , including new water hoses x 9 new thermostat and housing new water pump, new belts and tensioner / guide rollers, new rocker gasket and oil filter housing gasket, new plugs, oil and filter, new idle valve pipe, new intake boot. New M3 clutch flywheel and spigot bearing, manual engine harness and mapped ecu, new power steering pump and lines, a Z3m short shifter with new weighted M3 knob, Purple tag quick rack with new rack ends and rubber gaiters, box has new detent springs, new clutch pivot and new selector linkage and all shifter bushes.
The tourer now has New Bilstein B6 shocks with new Bilstein top mounts, new BMW spring rubbers, Eibach pro springs, genuine M3 3.0 wishbones completely refurbished with new solid HD inner and outer ball joints, new M3 solid rubber offset lollipop bushes, new engine and box mounts, the prop again completely refurbished and having new centre bearing and rubber doughnut fitted.
The car has the Factory 328 cat and backbox again having only covered 73k were in very good but have been cleaned and had all new gaskets and hangers fitted, we fitted new brake lines and fuel lines to the shell. New handbrake cables and all handbrake parts, inc cable hangers, fuel filter, fixtures and fittings, nuts and bolts etc etc
The body - Genuine M3 front and rear bumpers, front M3 diffuser, Genuine M3 wing mirrors, side skirts, M3 mouldings and Full genuine clear M sport light package
Freshly powder coated Genuine staggered 17” M3 contour alloys wrapped in new Goodyear F1 NCT5 tyres, 245 40 17 rear and 225 45 17 front + a matching spare wheel.
Other parts include
M3 evo steering wheel re covered in Alcantara, full black leather interior, Black headliner and parts, Full 18 button OBC, Cruise control, reversing sensors, digital air con, all working as they should,
The car now has the speedo / clocks fitted from the donor car showing 73000 miles, so will never ring true on a mot history millage search but we have nothing to hide, we have over 100 photos of the build and a huge file of bills to prove what's been fitted. The shell has done approx. 220k yes, nothing for a well looked after E36!, but has been freshly built with a new running gear and a 73k engine, box prop and exhaust that have also all been though, having numerous new parts fitted to, to ensure future reliability
This has been a real labour of love with around 200 Hours going into it but the results speak for them selves, a very unique stunning car, probably the only one like it in the UK and we only know of one other that was built in Germany and has since been sold and exported to a customer in the USA, We have been building E36 race cars for some years so have put parts into this car that make it the ultimate everyday road driving machine, and in our opinion how they should have left the factory 25 years ago!
For Sale, with 12 months MOT, no advisories. Drives superb, freshly serviced, new fluids throughout including engine, box, diff, power steering, coolant, new plugs, oil filter and air filter, Ice cold air con, no faults, everything works as it should, front and rea electric windows, electric m3 mirrors, sunroof, reversing sensors, cruise control the lot. a truly lovely car to comfortably cruise in for many more years / miles to come
£11995 ono NOW SOLD
